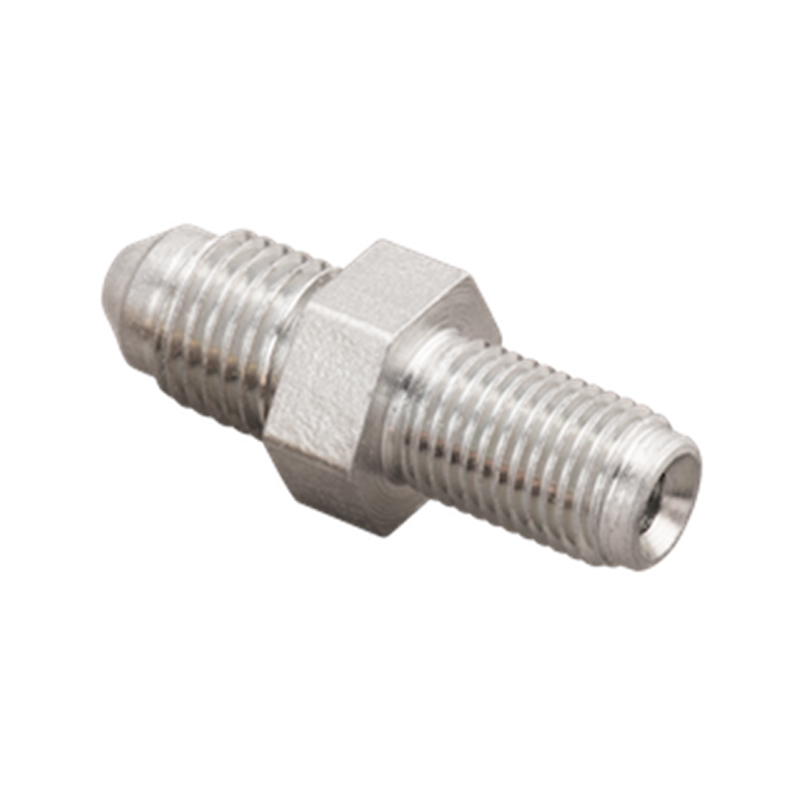

Male-Male Adapters
Description
| Part Number | JIC Stud Thread | Other Stud Thread | Other Stud Length | Hex | Overall Length |
| 001-128 | 3/8-24 UNF (-3 JIC) | M10 × 1.25 | 16mm | 1/2” | 36mm |
| 002-129 | 3/8-24 UNF (-3 JIC) | M10 × 1 | 16mm | 1/2” | 34.2mm |
| 003-130 | 3/8-24 UNF (-3 JIC) | M10 × 1.5 | 16mm | 1/2” | 60mm |
| 004-131 | 7/16-20 UNF (-4 JIC) | 3/8-24 UNF | 16mm | 1/2” | 37.1mm |
| 005-132 | 3/8-24 UNF (-3 JIC) | 1/4-28 UNF | 16mm | 1/2” | 36mm |
| 006-134 | 7/16-20 UNF (-4 JIC) | 7/16-24 UNS | 16mm | 9/16” | 36mm |
| 007-135 | 3/8-24 UNF (-3 JIC) | 3/8-24 UNF | 16mm | 1/2” | 34.2mm |
| 008-144 | 7/16-20 UNF (-4 JIC) | M12 × 1 | 16mm | 14mm | 36mm |
| 009-149 | 7/16-20 UNF (-4 JIC) | M12 × 1.25 | 16mm | 14mm | 37mm |
| 010-168 | 3/8-24 UNF (-3 JIC) | 1/2-20 UNF | 13mm | 1/2” | 33mm |
| 011-176 | 7/16-20 UNF (-4 JIC) | M10 × 1 | 11.6mm | 1/2” | 31.6mm |
| 012-197 | 3/8-24 UNF (-3 JIC) | 9/16-18 UNF | 15mm | 9/16” | 33.2mm |
