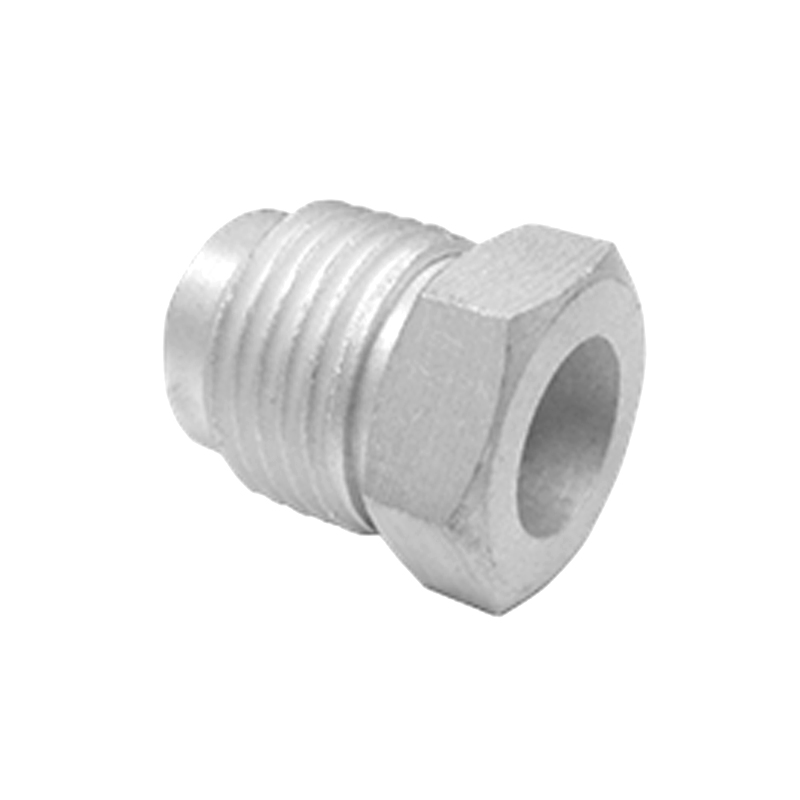

Braze On Studs
Description
| Part Number | Thread | Seat Type | Tube Size | Stud Length | Hex | Material |
| 001-153 | 3/8-24 UNF | -3 JIC | 3/16” | 12.2mm | 7/16” | Steel |
| 002-170 | 9/16-18 UNF | -6 JIC | 3/8” | 14.1mm | 5/8” | Aluminum |
| 003-171 | 5/8-18 UNF | 45° | 3/8” | 15.7mm | 11/16” | Aluminum |
| 004-172 | 3/4-16 UNF | -8 JIC | 1/2” | 16.7mm | 13/16” | Aluminum |
| 004-173 | 7/8-14 UNF | -10 JIC | 5/8” | 22.6mm | 15/16” | Aluminum |
| 005-174 | 1 1/16-14 UNS | 45° | 3/4” | 25.4mm | 1 1/16” | Aluminum |
| 006-226 | 9/16-18 UNF | -6 JIC | 3/8” | 14.1mm | 5/8” | Steel |
| 007-227 | 9/16-18 UNF | -6 JIC | 10mm | 14.1mm | 5/8” | Steel |
| 008-228 | 9/16-18 UNF | -6 JIC | 1/2 ” | 14.1mm | 11/16” | Steel |
