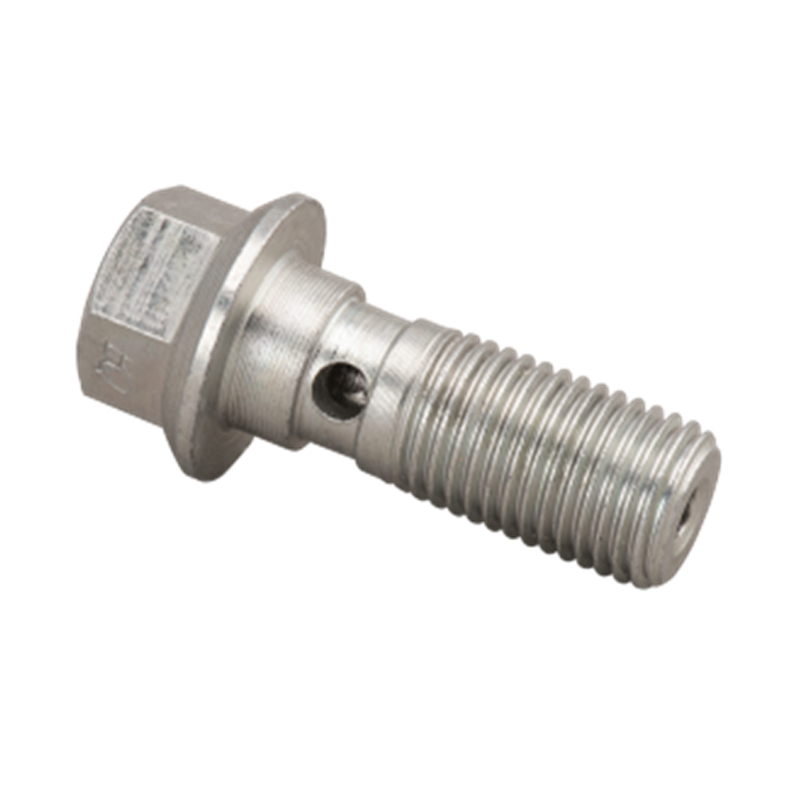

Banjo Bolt
Description
| Part Number | Thread | Stud Length | Hex | Washer |
| 001-8075 | M10 × 1.5 | 20mm | 11mm | 1016 |
| 002-8076 | M8 × 1 | 17mm | 10mm | 813 |
| 003-8077 | M8 × 1.25 | 16mm | 10mm | 813 |
| 004-8078 | M12 × 1.25 | 25mm | 13mm | 1218 |
| 005- 8083 (double) | M10 × 1 | 34.5mm | 11mm | 1016 |
| 006- 8084 (double) | M10 × 1.25 | 34.5mm | 11mm | 1016 |
| 007- 8085 (double) | 3/8-24 UNF | 34.5mm | 7/16” | 3858 |
| 008- 8086 | M10 × 1.5 | 23mm | 11mm | 1016 |
| 009- 8086SS | M10 × 1.5 | 23mm | 11mm | 1016 |
| 010- 8087 | M11 × 1.25 | 23mm | 11mm | 1118 |
| 011- 8088 | M10 × 1.5 | 27mm | 11mm | 1016 |
| 012- 8089 | 7/16-20 UNF | 23.8mm | 1/2” | 1118 |
| 013- 8090 | 7/16-24 UNS | 26.5mm | 1/2” | 1118 |
| 014- 8092 | M12 × 1.5 | 25mm | 13mm | 1218 |
| 015- 8093 | 3/8-24 UNF | 25mm | 11mm | 3858 |
| 016- 8094 | M10 × 1 | 26mm | 11mm | 1016 |
| 017- 8095 | M10 × 1 | 22mm | 11mm | 1016 |
| 018- 8096 | 7/16-20 UNF | 27mm | 11mm | 1118 |
| 019- 8097 | 1/2-20 UNF | 31mm | 9/16” | 1320 |
| 020- 8098 | M12 × 1 | 21.3mm | 13mm | 1218 |
| 021- 8099 | M10 × 1.25 | 22mm | 11mm | 1016 |
