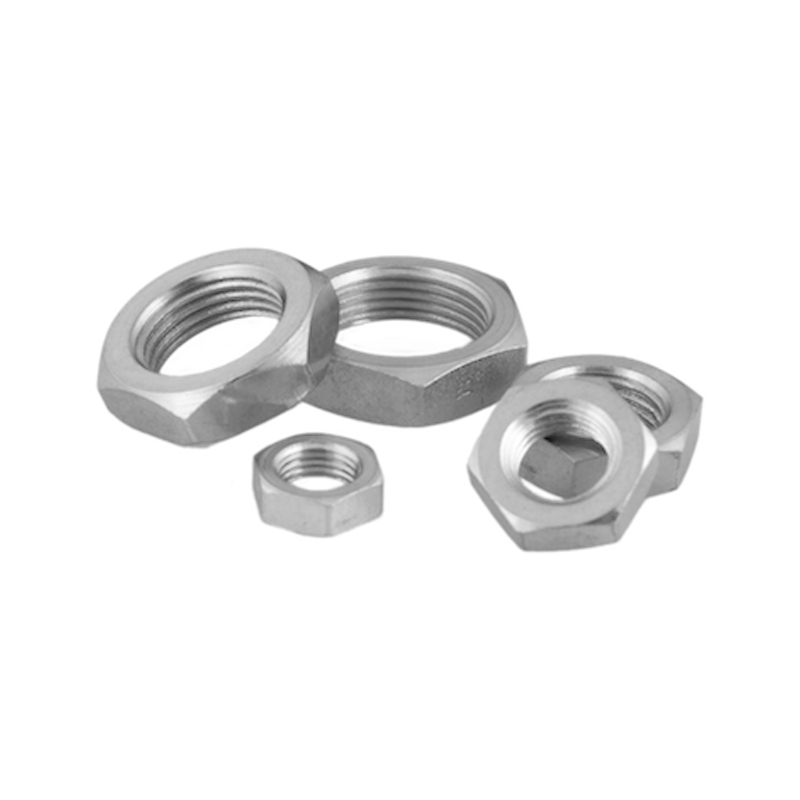

Bulkhead Nuts
Description
| Part Number | Thread | Hex Size | Thickness |
| 001-13 | 5/8-18 UNF | 15/16” | 8 mm |
| 002-75 | 7/8-14 UNF | 1 1/8” | 8 mm |
| 003-77 | 11/16-18 UNS | 1” | 8 mm |
| 004-78 | 3/8-24 UNF | 1/2” | 5 mm |
| 005-79 | M10 × 1 | 13 mm | 5 mm |
| 006-80 | 7/16-20 UNF | 5/8” | 6 mm |
| 007-81 | M12 × 1 | 19 mm | 6 mm |
| 008-82 | M12 × 1.5 | 19 mm | 6 mm |
| 009-83 | 1/2-20 UNF | 3/4” | 6 mm |
| 010-84 | 3/4-16 UNF | 1 1/16” | 8 mm |
| 011-85 | M20 × 1.5 | 27 mm | 8 mm |
| 012-86 | M18 × 1.5 | 25 mm | 8 mm |
| 013-87 | M16 × 1.5 | 22 mm | 7 mm |
| 014-89 | 7/8-18 UNS | 1 1/8” | 8 mm |
