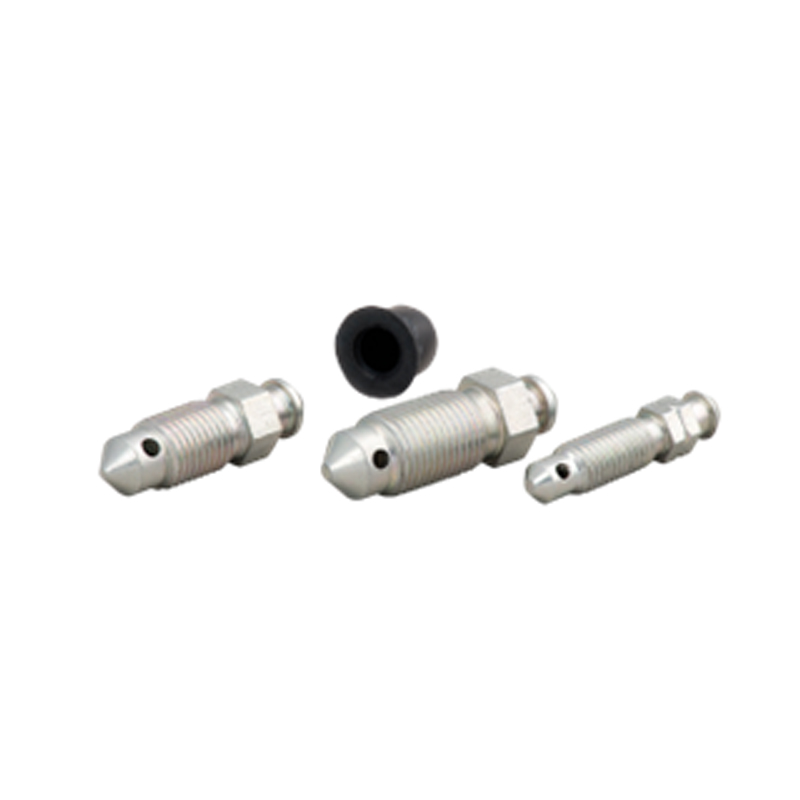

Bleed Screws
Description
| Part Number | Thread | Stud Length | Hex Size | Cap Size |
| 001-4433 | 3/8-24 UNF | 20.8 mm | 3/8” | Large |
| 002-4434 | M10 × 1 | 24.1 mm | 10 mm | Large |
| 003-4435 | M10 × 1 | 19.5 mm | 10 mm | Large |
| 004-4436 | M7 × 1 | 12.5 mm | 8 mm | Small |
| 005-4438 | 5/16-24 UNF | 17.5 mm | 5/16” | Large |
| 006-4439 | 1/4-28 UNF | 15.3 mm | 7 mm | Small |
| 007-4440 | M10 × 1.5 | 17.9 mm | 10 mm | Large |
| 008-4441 | M7 × 1 | 21.5 mm | 7 mm | Small |
| 009-4442 | M8 × 1.25 | 22.1 mm | 8 mm | Large |
| 010-4443 | M8 × 1 | 17.5 mm | 8 mm | Large |
| 011-4444 | 7/16-24 UNS | 24.5 mm | 7/16” | Large |
| 012-4445 | 7/16-20 UNF | 20.5 mm | 7/16” | Large |
| 013-4446 | M10 × 1.25 | 20.4 mm | 10 mm | Large |
